10A 12V Time Relay Adjustable Time Delay Relay Module LED Digital Timming Relay Timer Delay Trigger Switch for Motor LED

10A 12V Time Relay Adjustable Time Delay Relay Module LED Digital Timming Relay Timer Delay Trigger Switch for Motor LED Item NO.: 32957410211

Write a Review
US$ 8.97
Customized Requirements
Quantity
Stock ( 9999999 )

Copy and share this link on social network or send it to your friends

Copy
Product Name 10A 12V Time Relay Adjustable Time Delay Relay Module LED Digital Timming Relay Timer Delay Trigger Switch for Motor LED
Item NO. 32957410211
Weight 0.039 kg = 0.0860 lb = 1.3757 oz
Category Home Improvement > Electrical Equipments > Relays > Time Relay
Creation Time 2020-10-29

Description

10A 12V Time Relay Adjustable Time Delay Relay Module LED Digital Timming Relay Timer Delay Trigger Switch for Motor LED

Model: YYC-2S 24 Common functions, to meet more application needs; can control solenoid valves, pumps, motors, lights, etc.
Input Voltage: DC 12V
Output power: 10A Relay
Time range: 0.01s-999m Adjustable

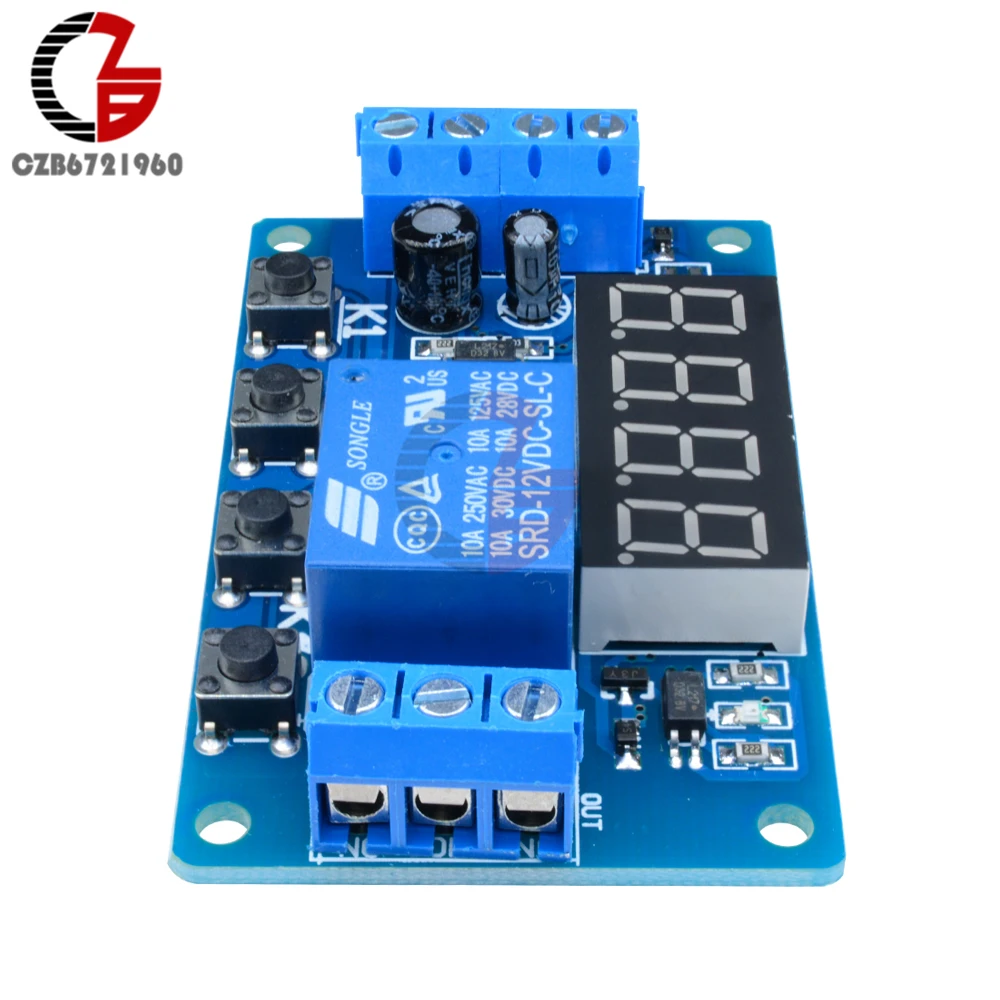

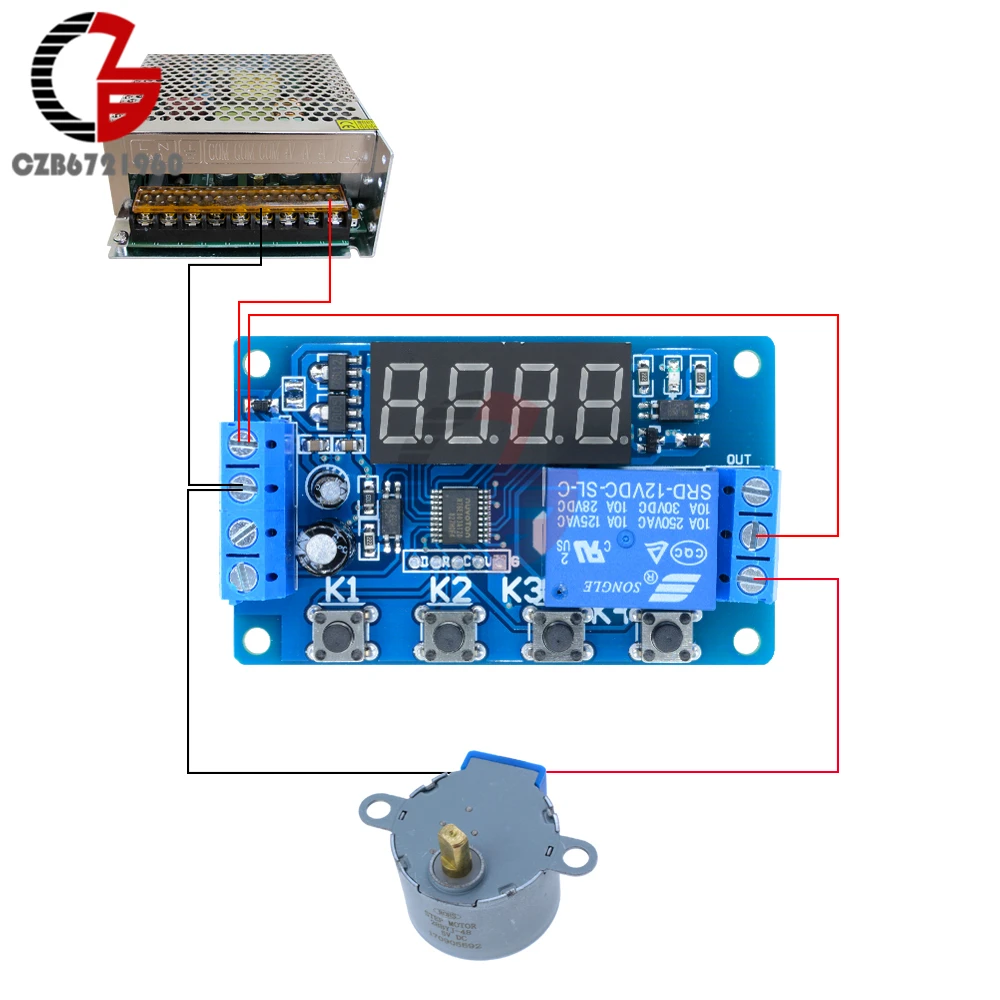

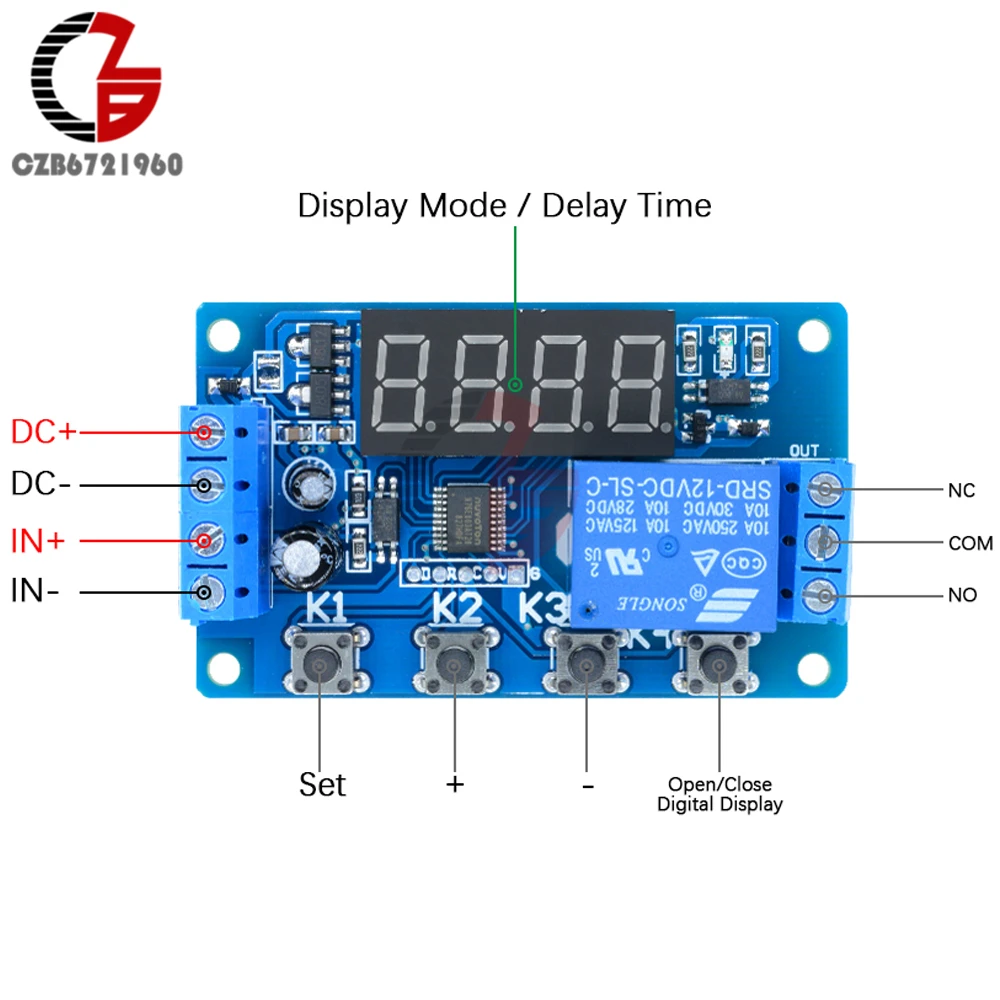

Description of the wiring port:
DC+: input DC power supply positive
DC-: input DC power supply negative
IN+: positive input terminal
IN-: signal input terminal
NO: relay normally open interface, the relay is suspended before the suction, after the suction and short circuit with COM
COM: relay common interface
NC: The relay normally closes the interface, and the relay is shorted to COM before the suction is closed.

Function:

P-11: Jog P-12: Self-locking P-13: Give signal, the relay will stop automatically for A seconds; the trigger will be invalid during the delay.
P-14: Give signal, relay will stop automatically for A seconds; trigger re-time during delay
P-15: Give signal, relay is automatically stopped for A seconds; trigger timing is triggered during delay
P-16: Give signal, relay will stop automatically for A seconds; trigger reset during delay
P-17: Give signal, relay is closed, input signal is disconnected, output is off after A seconds
P-18: After power-on, the relay will immediately pull in, after a delay of A seconds, the power will be turned off;
P-21: Disconnect the signal relay, after a delay of A seconds, the relay pulls in
P-22: Give signal, after more than A seconds, the relay pulls in, the signal disappears, the relay stops.
P-23: After the signal disappears for more than A seconds, the relay is closed, there is a signal, and the relay stops.
P-24: There is a signal. After more than A seconds, the relay is closed. When the signal disappears for more than A seconds, the relay stops.
P-25: There is a signal after more than A seconds, the relay is closed, and after a signal exceeds A seconds, the relay stops.
P-26: There is a signal. The relay stops after A seconds of suction, and the signal disappears. The relay stops again after A seconds.
P-27: The pulse signal is detected and the relay is closed; if there is no pulse signal, the relay delays for A seconds;
P-28: After power-on, after a delay of A seconds, the relay pulls in until the power is turned off.
P-31: After power-on, the relay pulls in for A seconds, disconnects B seconds, infinite loop; power-off stops P-32: signal, start P-31
P-33: Give a signal, start P-31 infinite loop; give another signal to terminate the loop
P-34: After power-on, after a delay of A seconds, the relay pulls in and closes after B seconds.
P-35: There is a signal. After a delay of A seconds, the relay pulls in and closes after B seconds.
P-36: There is a signal. After more than A seconds, the relay pulls in and closes after B seconds.
P-37: There is a signal, the relay will stop automatically for A seconds, and then stop for 24 seconds. The signal trigger is invalid during A+B time.
P-38: There is a signal, the relay will stop automatically for A seconds, stop and re-time for B seconds, and then automatically close for A seconds.
P-41: There is no signal; the signal disappears; the relay works after the delay of A time.
P-42: The signal disappears, after a delay of A time, the relay works; the end of work B time
P-43: The signal disappears. After the A time, the relay works; the working B time ends.
P-44: After power-on, the relay works for A time, and stops B time; the cycle stops automatically for C times.
P-45: The power is not activated, after the signal is given; the relay works for A time, the B time is stopped; the cycle C stops automatically; the signal is given again, once again
P-46: After the signal is sent for more than A times, the relay is closed; the suction is kept; the power is stopped.
P-47: After the signal is sent for more than A times, the relay is closed for B seconds.
P-48: In C seconds, after the signal is continuously sent for more than A times, the relay is closed for B seconds.

Instructions:

The power-on display “————” means to enter the standby state;
Press K1 for the first time (more than 1 second is required to prevent false triggering)
Screen display: P -11: K2 adjusts the main mode, K3 and K4 adjustment functions
Press the second time K1, the screen displays: A001: K2 and K3 adjust the first time A, K4 adjust the decimal point (time unit)
Pressing the third K1, the screen displays: B001: K2 and K3 adjust the second time B, K4 adjusts the decimal point (time unit)
Pressing the fourth K1, “————” means entering the standby state;
Press K4 in standby mode to permanently turn off/on the display and switch the low power mode.
X.XX decimal point in hundred, timing range: 0.01 seconds to 9.99 seconds
XX.X decimal point in ten, timing range: 0.1 seconds to 99.9 seconds
XXX has no decimal point, timing range: 1 second ~ 999 seconds
XXX. The decimal point is in one place, the time range is from 1 minute to 999 minutes.
