12V DC Infinite Cycle Delay Timing Timer Relay ON OFF Switch Loop Module Trigger M14 dropshipping L29K

12V DC Infinite Cycle Delay Timing Timer Relay ON OFF Switch Loop Module Trigger M14 dropshipping L29K Item NO.: 33032183236

Write a Review
US$ 10.92
Customized Requirements
Quantity
Stock ( 9999999 )

Copy and share this link on social network or send it to your friends

Copy
Product Name 12V DC Infinite Cycle Delay Timing Timer Relay ON OFF Switch Loop Module Trigger M14 dropshipping L29K
Item NO. 33032183236
Weight 0.027 kg = 0.0595 lb = 0.9524 oz
Category Home Improvement > Electrical Equipments > Relays > Time Relay
Creation Time 2020-10-29

54224

Hi, Look Here



This module uses MCU as the main chip.
High timer precision.
MCU watchdog circuit and special reset chip.
Stable and reliable work.

Specification:

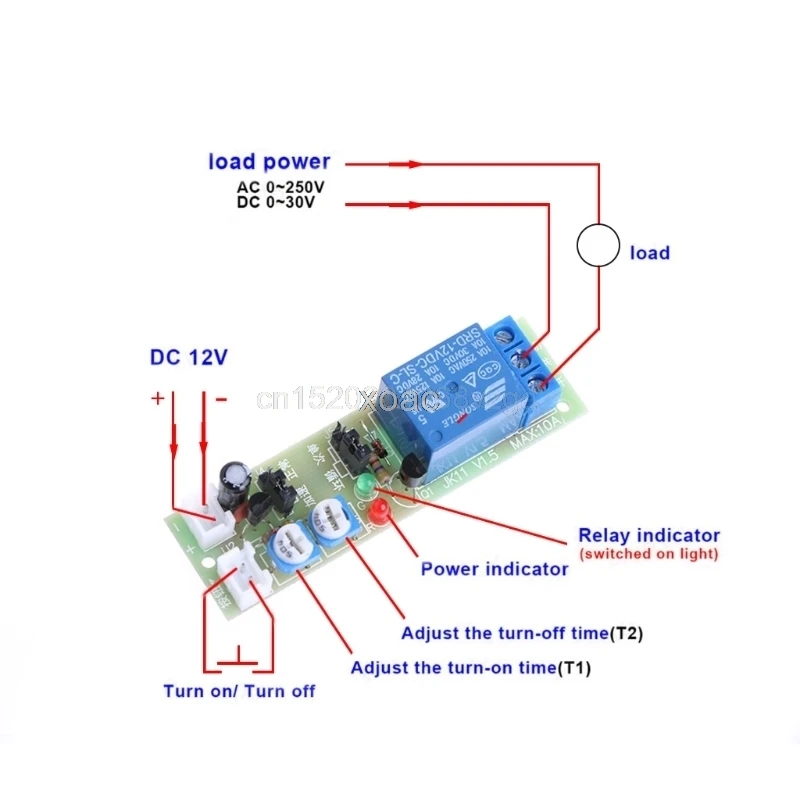

T1(the relay turn on delay time), T2(the relay turn off delay time)
Once mode (Jumper OP3)
1. The module Power-on, When triggered the relay is switched on, delay T1, and the relay disconneted.
2. When triggered on the delay process, again triggered, it will immediately interrupt the delay.

Cycle mode(Jumper OP4)
1. The module Power-on, When triggered the relay is switched on, delay T1,and the relay is disconneted, delay T2,
the relay is switched on again. Such cycle. T1 and T2 are set by two adjustable resistors, respectively.
2. When triggered on the delay process, again triggered, it will immediately interrupt the delay.

Typical application reference:
1. timer operating equipment, such as each press key trigger,when reach 5 minutes the automatic power off.
2. machine repeat test circuits, such as power 1 minutes on and then power off 1 minutes of ,such a cycle
of testing.
3. fish tank pump intermittent pumping oxygen.
4. other timer control equipment.

Performance:
Jumper OP1: 1 to 100 seconds, 0.1 seconds of regulation accuracy
Jumper OP2: 1 seconds to 15 minutes, 1 seconds of regulation accuracy
The time delay error of all kinds of temperature and humidity is not more than 2%

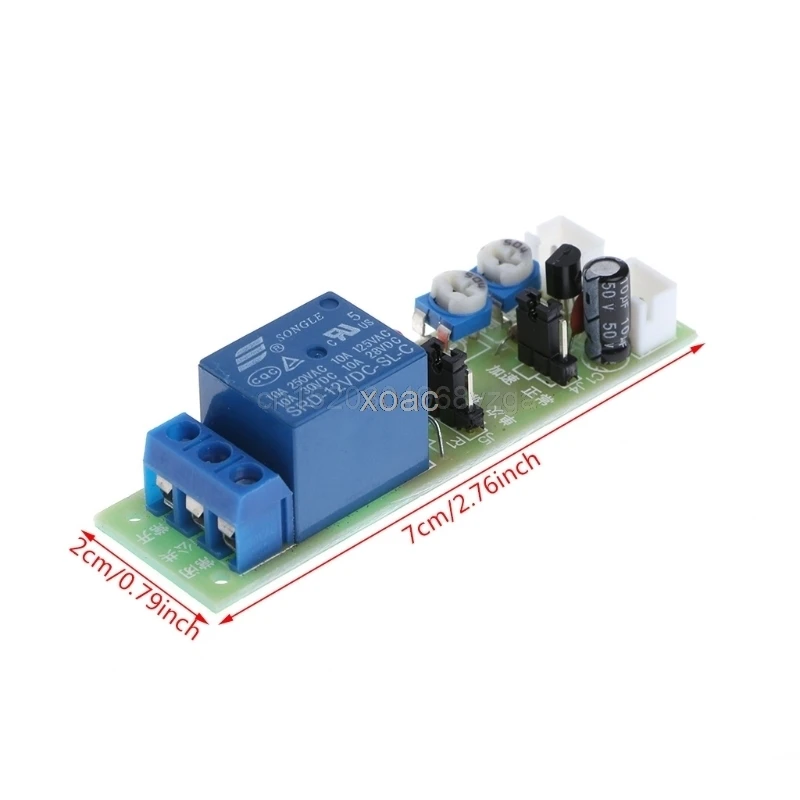

Size: 7x2cm/2.76x0.79inch
Quantity: 1 Pc
Note:
Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package includes:

1 x Infinite Cycle Delay Timer Relay
