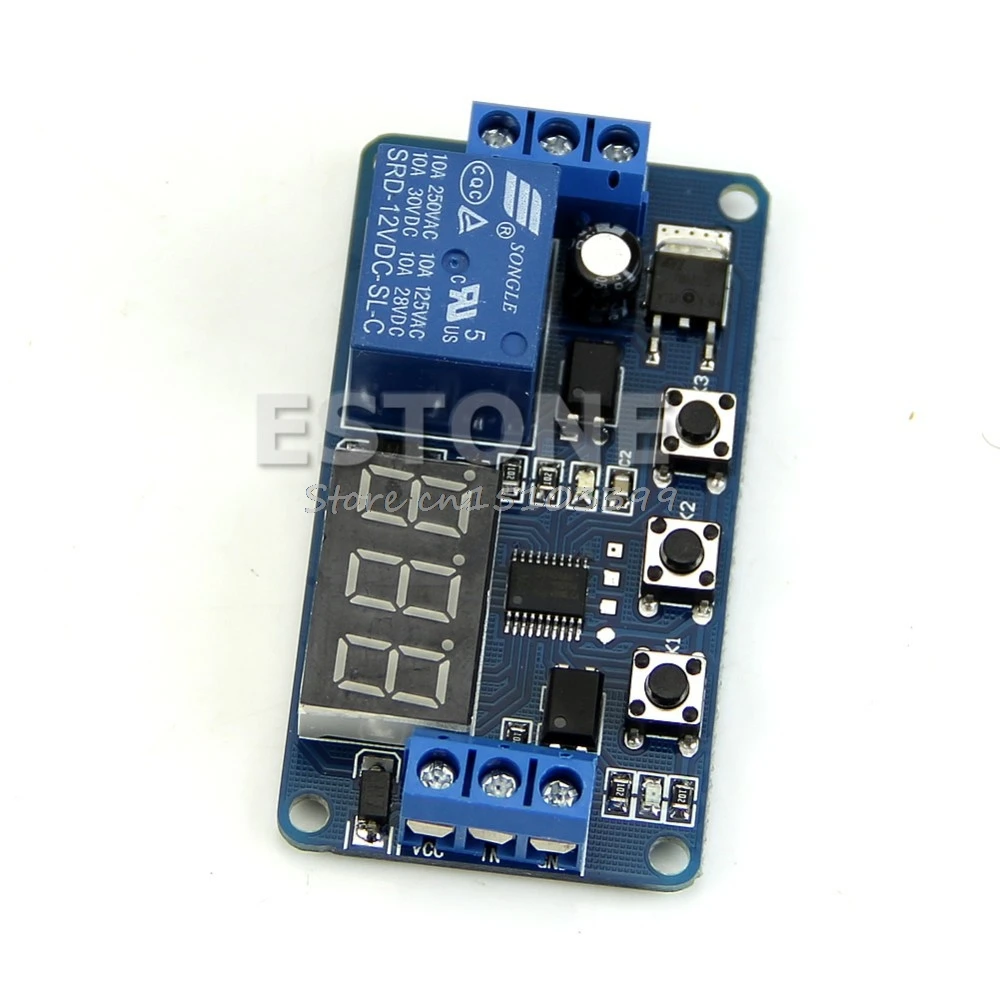

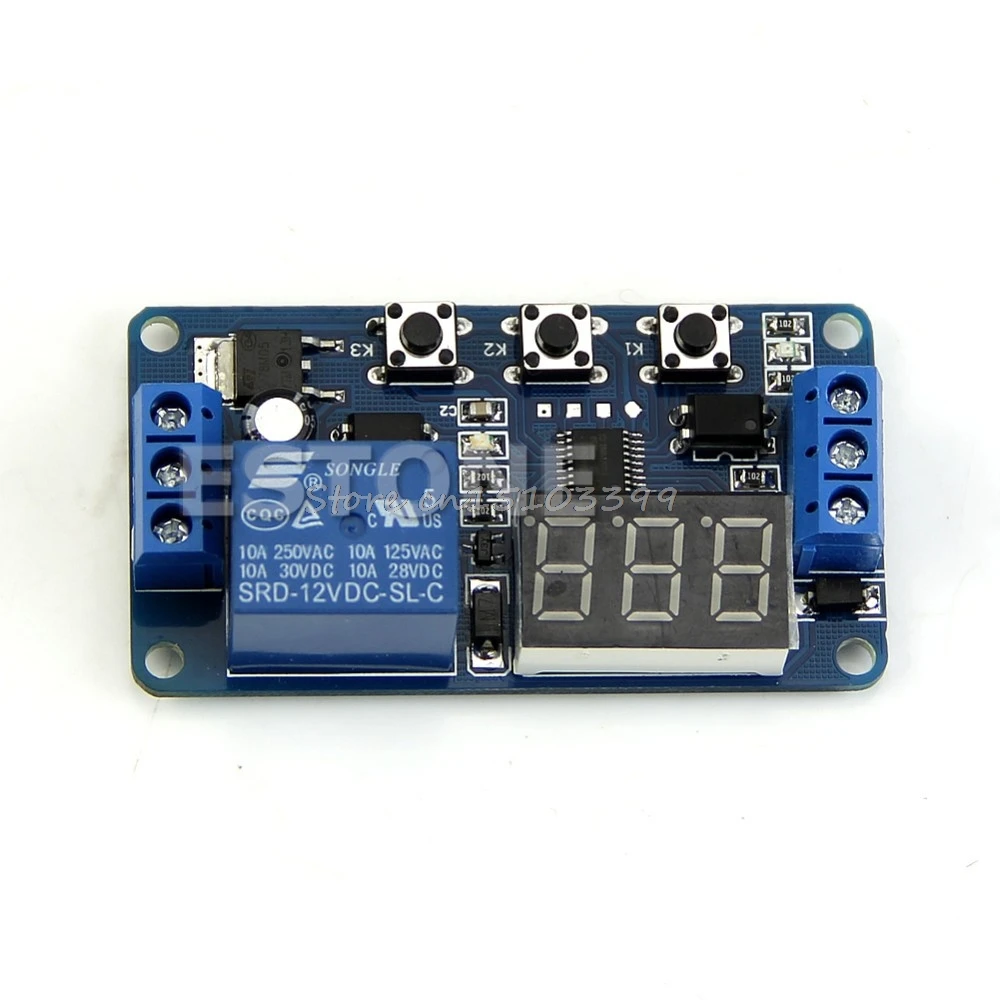

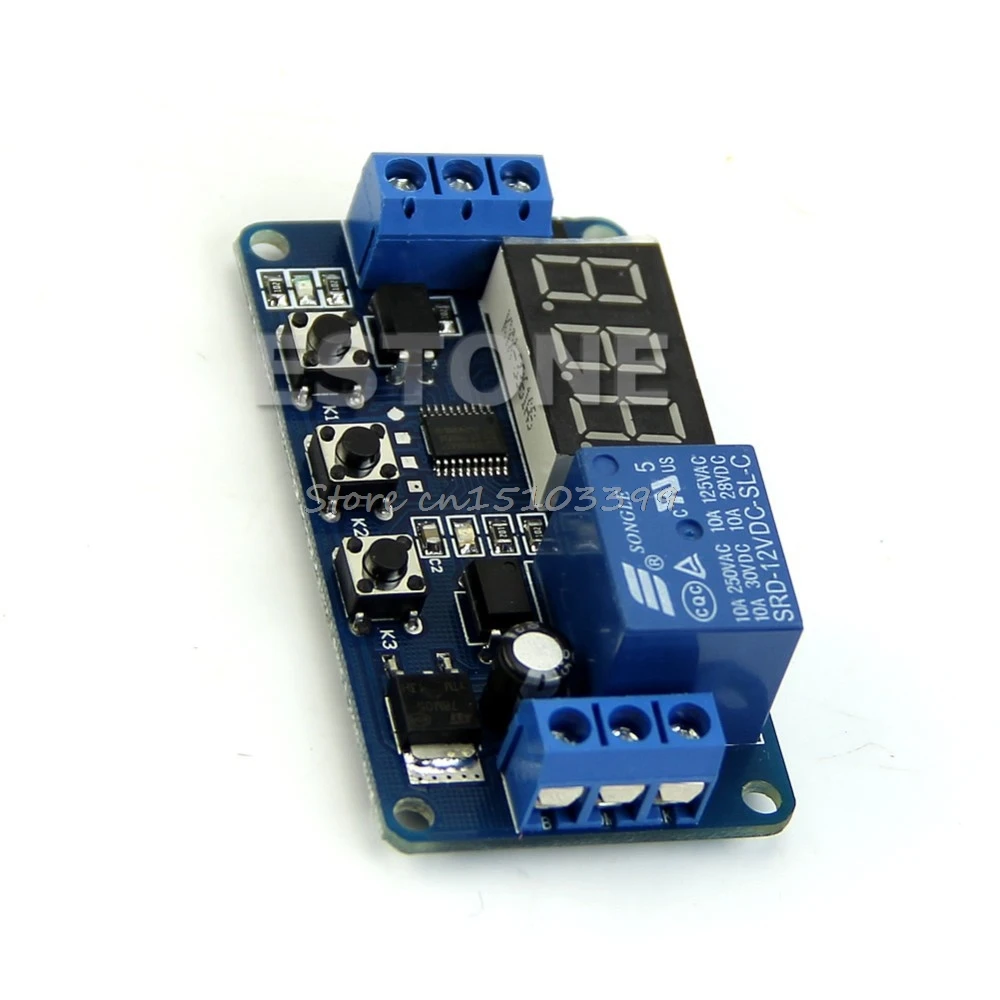

12V LED Home Automation Delay Timer Control Switch Relay Module Digital display G08 Whosale&DropShip

12V LED Home Automation Delay Timer Control Switch Relay Module Digital display G08 Whosale&DropShip Item NO.: 32703438308

Write a Review
US$ 15.96
Customized Requirements
Quantity
Stock ( 9999999 )

Copy and share this link on social network or send it to your friends

Copy
Product Name 12V LED Home Automation Delay Timer Control Switch Relay Module Digital display G08 Whosale&DropShip
Item NO. 32703438308
Weight 0.047 kg = 0.1036 lb = 1.6579 oz
Category Home Improvement > Electrical Equipments > Relays > Time Relay
Creation Time 2020-10-29





  • New upgrades to simplify,to meet customer needs.
  • Increase the supply anti-reversefunction.
  • The use of opto isolated input and output,enhanced anti-jamming capabilit
    consumption.
  • Set parameter after power for ever memories.
  • Signal terminal voltage signal can be maintained for a longtime.
  • to ensure stability,industrial grade board,class PLC.
    Product parameters:
  • Size:64.2mm*34.8mm*18.5mm.
  • Relay Specifications:AC 220V 10A or DC 30V 10A.
  • Quiescent Current:20mA,Operating Current:50mA.
  • Working voltage:10~16V (if other ranges can be customized).
  • Signal voltage:4V~20V (if other ranges can be customized).
  • life:about100,000times,Working temperature:-40~85'C.aeProduct.getSubject()Working mode selection:After power on,long press K12 seconds later into the select function mode,P1-1~P1-4forchoose.
    P1-1 operating modes:a signal to trigger relay, time is up,the relay
    disconnect users,You can set relay time T,click K2 the hundreddigital
    tube starts flashing,then press K3, the hundred digital change;click K2
    ten digital tube starts flashing,then press K3,ten digit changes;click K2
    bit digital tube starts flashing, then press K3, single-digit change;then
    click K2,; digital pipe does not blink,then press the K3, shifting the
    decimalpoint,the decimalpointin abitindicates 0-999minutesin ten
    represents 0 to 99.9 seconds withou tadecimalpointrepresents 0-999
    seconds;goodchoice,bringing the time setting is completed.Short press
    K1,enterfunction offine-tuning settings,triggerthedefaultdelayperiod
    is invalid, press K1, during the delay trigger active(re-timing),clickon
    the K1, during the delay reset (timer turned off,the relay reset) press
    again to repeat the default settings for the first time.
    P1-2 operating modes:Asignal trigger ,digital countdown begins,X
    seconds after,there lay open Y seconds,then close.Users can set the relay
    time X,Y;P1-1different time settings similar to the blue lights that set
    the relay time,blue light indicates setting relay off time. Short press K1,
    enter function offine-tuning the set,the default trigger is invalid during
    the delay,pressK1,during the delay trigger active(re-timing),then click
    the first repeat default settings.
    P1-3 operating modes:Open X seconds,disconnect Yseconds, infinite
    loop.Users can set the relay timeX,Y;time setting similar to P1-2.Short
    press K1,enter function offine-tuning set,The default function is:set up
    an electric circuit the relay first open, press the K1,there lay first
    close.Press again to repeat the default functionality.
    P1-4 operating modes:a signal to trigger the relay open but do not start
    the timer,when the trigger signal disappears,digital count down begins,X
    time after,the relayclose; During the delay,again to the signal,digital
    count down canceled, stays energized, the signal disappears, restart
    count down; (equivalentto release the button to start timing, commonly
    usedin power-offdelay).Users canset the relay time X; time setting similar to P1-1.aeProduct.getSubject()aeProduct.getSubject()

  •

  •
  •

Package includes:
1 x DC12V Delay Timer Control Switch Module

  •
  •
  • Angelos Astrantzis ,Our lovely user made a detailed instructions, you can make the following settings as he said, thank you for lovely guests ~
  •
  •
