DC 5V/12V LED Digital Display Home Automation Delay Relay Trigger Time Circuit Timer Control Cycle Adjustable Switch Module

DC 5V/12V LED Digital Display Home Automation Delay Relay Trigger Time Circuit Timer Control Cycle Adjustable Switch Module Item NO.: 32987386311

Write a Review
US$ 5.04
Size
12V 3-button 5V 4-button 12V 3-button Buzzer 12V 2-button Buzzer
Customized Requirements
Quantity
Stock ( 2170 )

Copy and share this link on social network or send it to your friends

Copy
Product Name DC 5V/12V LED Digital Display Home Automation Delay Relay Trigger Time Circuit Timer Control Cycle Adjustable Switch Module
Item NO. 32987386311
Weight 0.035 kg = 0.0772 lb = 1.2346 oz
Category Home Improvement > Electrical Equipments > Relays > Time Relay
Creation Time 2020-10-29

aeProduct.getSubject()

011342 (10.8)-1_

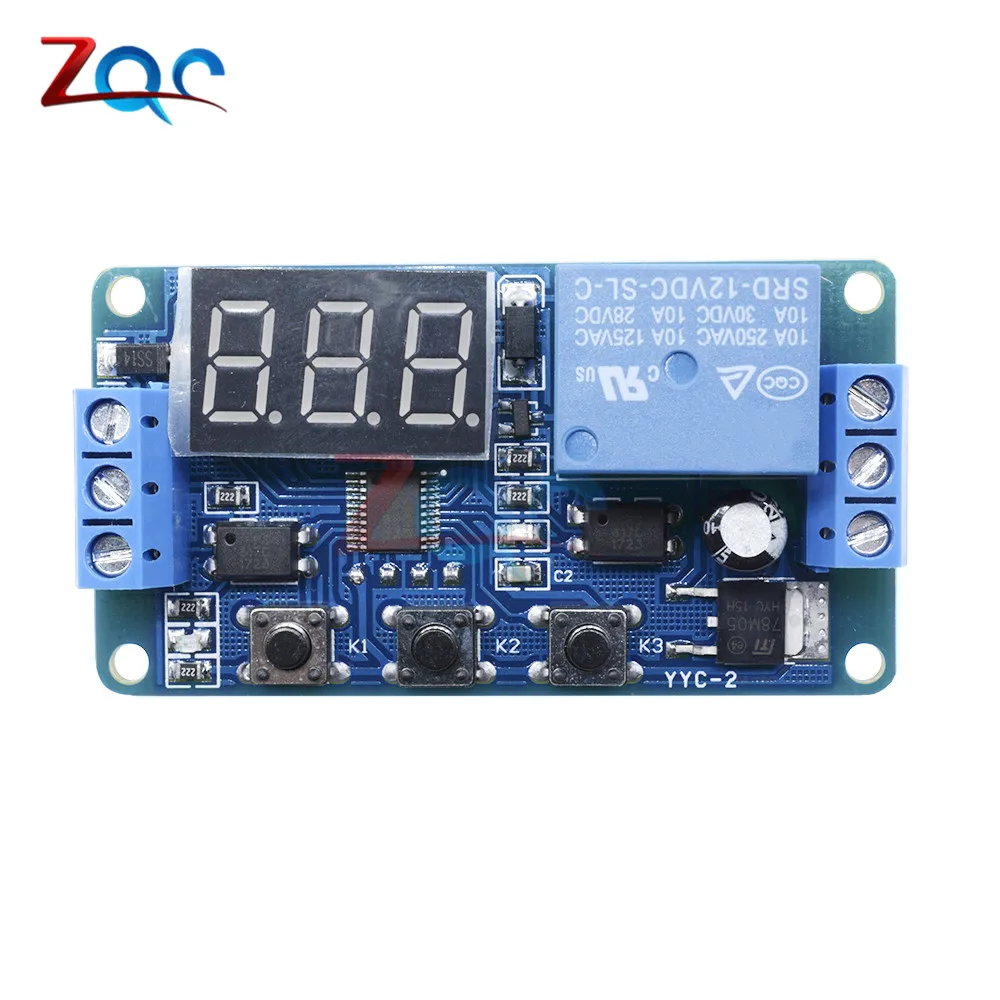

Description:
Increase the supply anti-reversefunction.
The use of opto isolated input and output,enhanced anti-jamming capabilit consumption.
Set parameter after power for ever memories.
Signal terminal voltage signal can be maintained for a longtime to ensure stability, industrial grade board, class PLC.

Parameter:
Size: 64.2mm*34.8mm*18.5mm.
Relay Specification: AC 220V 10A or DC 30V 10A.
Quiescent Current: 20mA
Operating Current: 50mA
Working voltage: DC 10 -16V (if other ranges can be customized)
Signal voltage: DC 4V -20V (if other ranges can be customized)
Life: about 100,000times
Working temperature: -40 -85℃


aeProduct.getSubject()

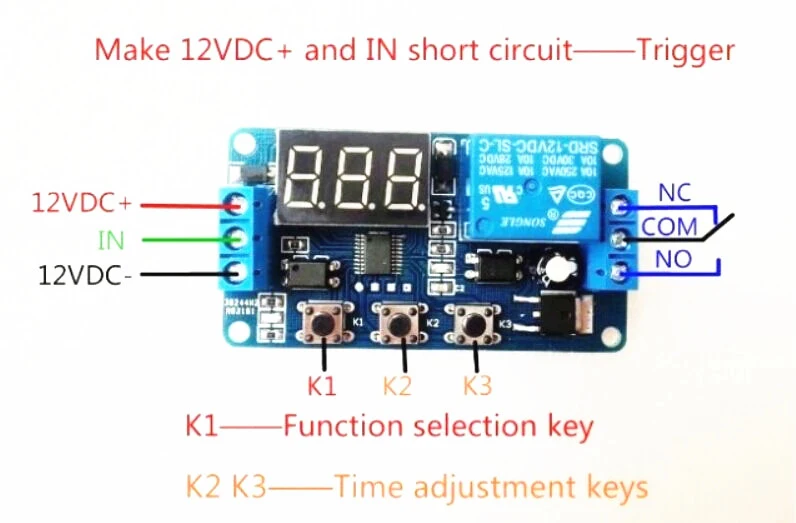

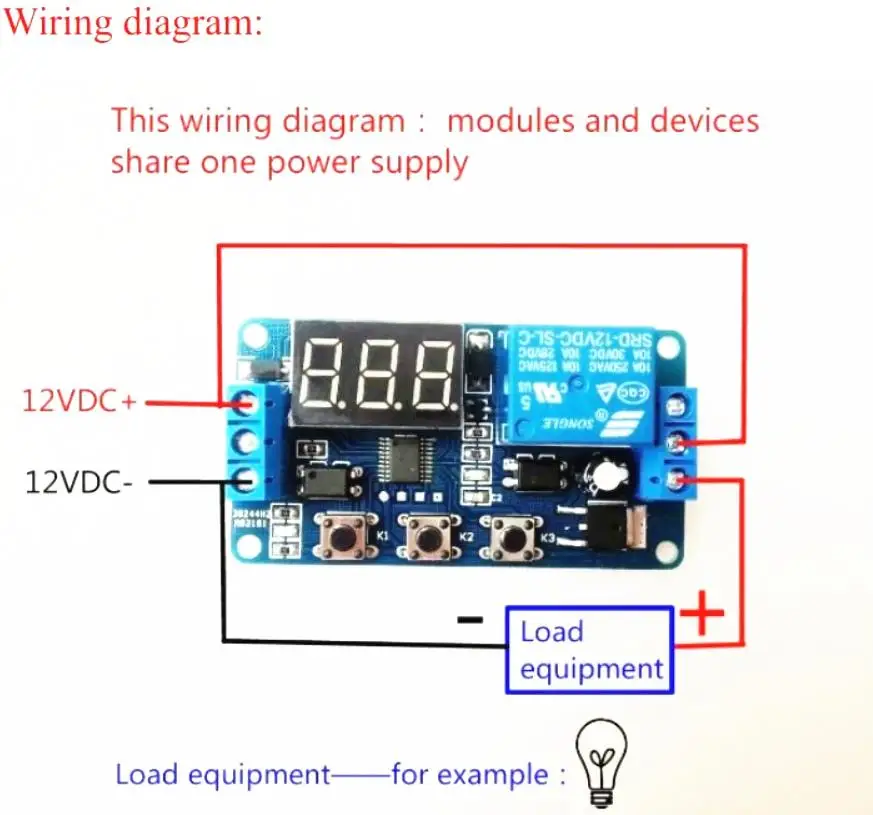

Selection: After power on,long press K12 seconds later into the select function mode,P1-1 to P1-4for choose.
P1-1 operating modes:a signal to trigger relay, time is up, the relay disconnect users. You can set relay time T, click K2 the hundred digital tube starts flashing, then press K3, the hundred digital change. Click K2
ten digital tube starts flashing, then press K3, ten digit changes. Click K2 bit digital tube starts flashing, then press K3, single-digit change. Then click K2, digital pipe does not blink, then press the K3, shifting the decimal point, the decimal point in a bit indicates 0-999 minutes in ten represents 0 to 99.9 seconds without decimal point represents 0-999 seconds. Good choice, bringing the time setting is completed. Short press
K1, enter function off line-tuning settings, trigger the default delay period is invalid, press K1, during the delay trigger active(re-timing), click on the K1, during the delay reset (timer turned off, the relay reset) press
again to repeat the default settings for the first time.
P1-2 operating modes: A signal trigger ,digital countdown begins, X seconds after, there lay open Y seconds, then close. Users can set the relay time X,Y. P1-1 different time settings similar to the blue lights that set
the relay time, blue light indicates setting relay off time. Short press K1, enter function offine-tuning the set, the default trigger is invalid during the delay, press K1, during the delay trigger active(re-timing), then click
the first repeat default settings.
P1-3 operating modes: Open X seconds, disconnect Y seconds, infinite loop.Users can set the relay time X,Y. Time setting similar to P1-2. Short press K1, enter function off line-tuning set. The default function is: set up
an electric circuit the relay first open, press the K1, there lay first close.Press again to repeat the default functionality.
P1-4 operating modes:a signal to trigger the relay open but do not start the timer, when the trigger signal disappears, digital count down begins, X time after, the relay close. During the delay, again to the signal, digital count down canceled, stays energized, the signal disappears, restart count down. (equivalent to release the button to start timing, commonly usedi n power-off delay). Users can set the relay time X; time setting similar to P1-1.



aeProduct.getSubject()aeProduct.getSubject()
100007(12

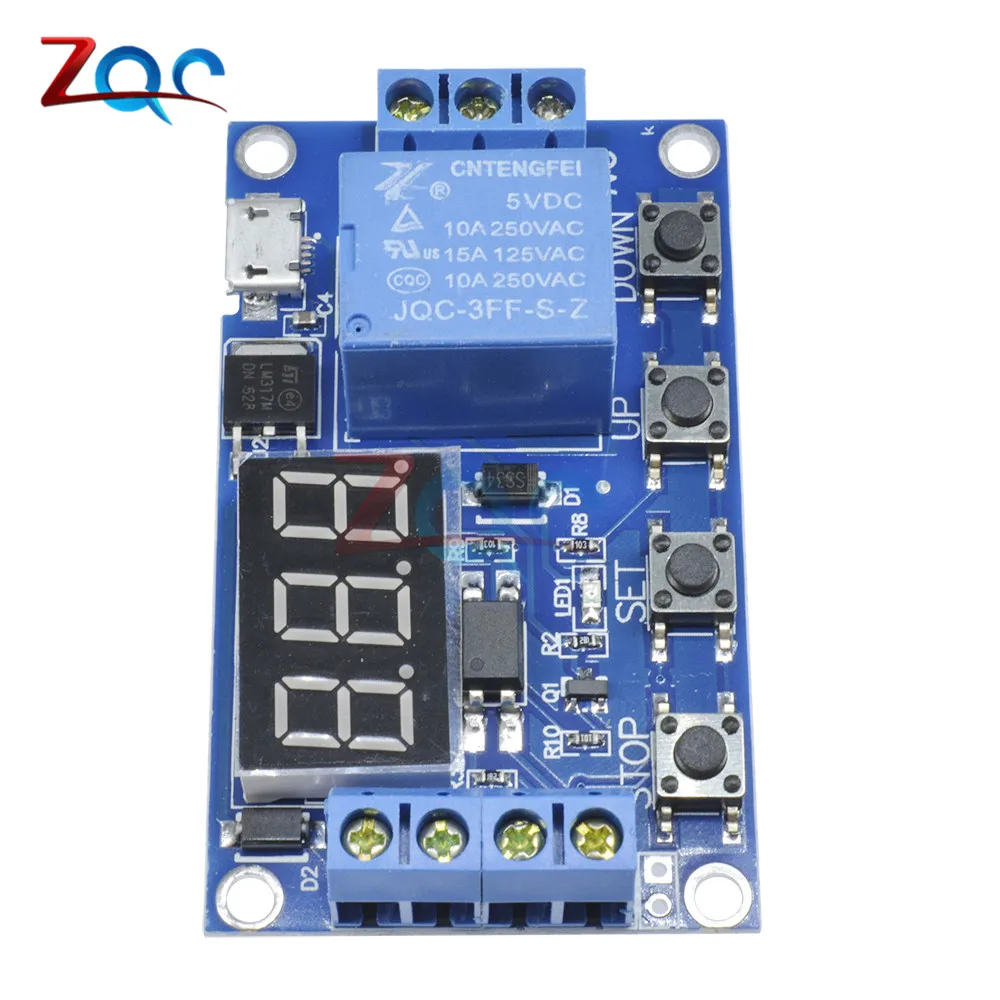

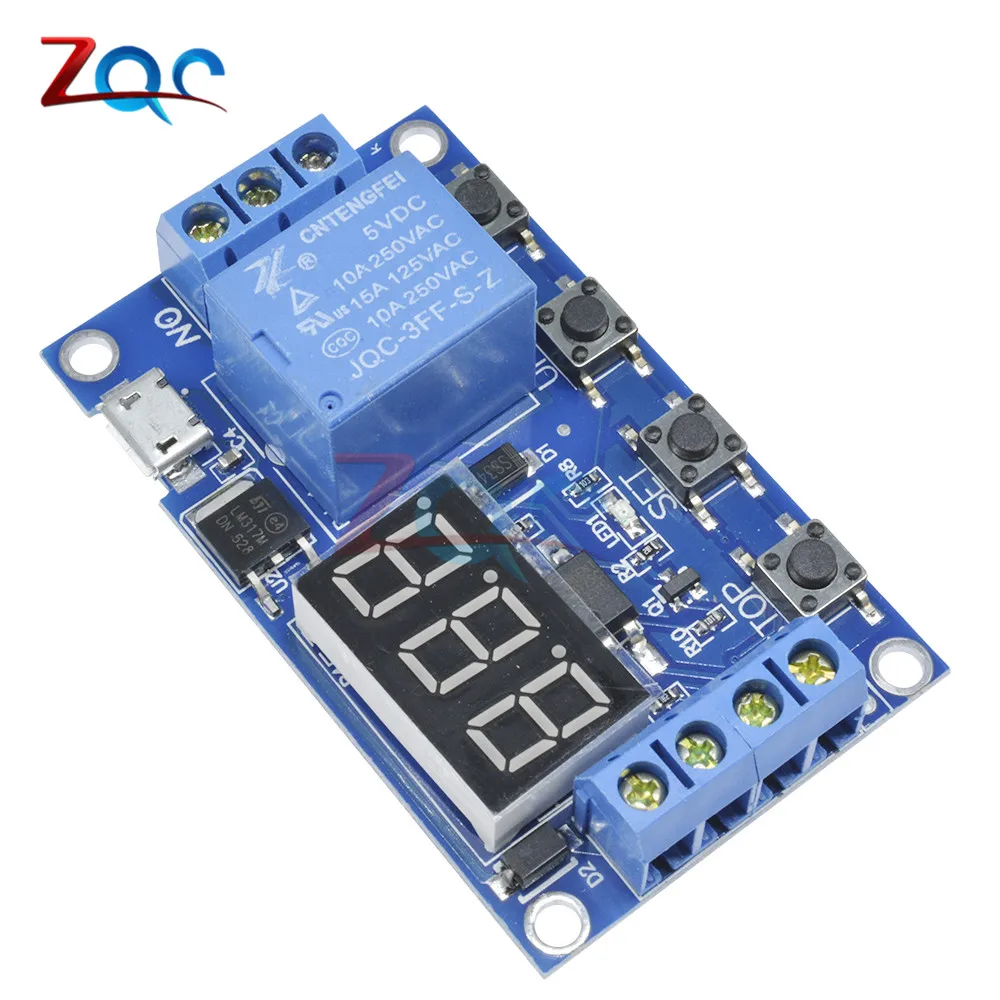

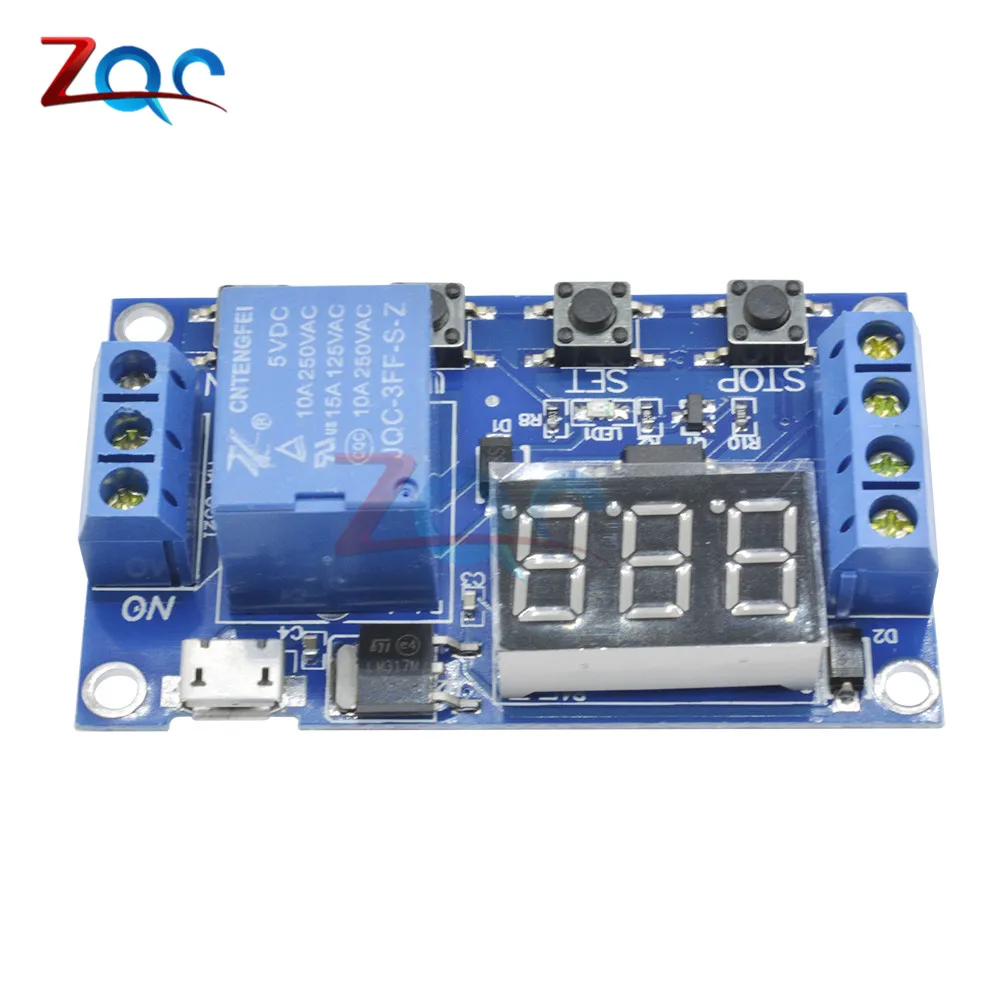

Highlight:
Wide voltage power supply (6 -30V), supports microUSB 5.0V power supply, easy to use;
The interface is clear and simple, powerful, easy to understand, meet almost all your needs;
The emergency stop function ("STOP" key);
With reverse polarity protection, reverse polarity will not burn the product.
Increase the sleep mode, if this mode is enabled, without any operation within 5 minutes, then automatically turn off the monitor, any key wake-up;
You can set a different OP, CL, LOP parameters, which are independent of each other, and are automatically saved;
After the module is powered down, all parameter settings are not lost.

Parameter:
1: Operating voltage: 6-30V, support microUSB 5.0V power supply
2: Trigger Source: Active-high (3.0V-24V), have optocoupler isolation, can improve the system's anti-jamming capability (customers can also shorting common ground).
3: Output capability: You can control the DC 30VDC 5A or  220VAC 5A device.
4: Quiescent Current: 20mA; Operating Current: 50mA
5: life: more than 10 million times; Working temperature: -40-85 ; Size:
6: with optocoupler isolation, enhanced anti-jamming capability, industrial grade board.

Note: The relay outputs are passive contact, just a switch.

100002(10

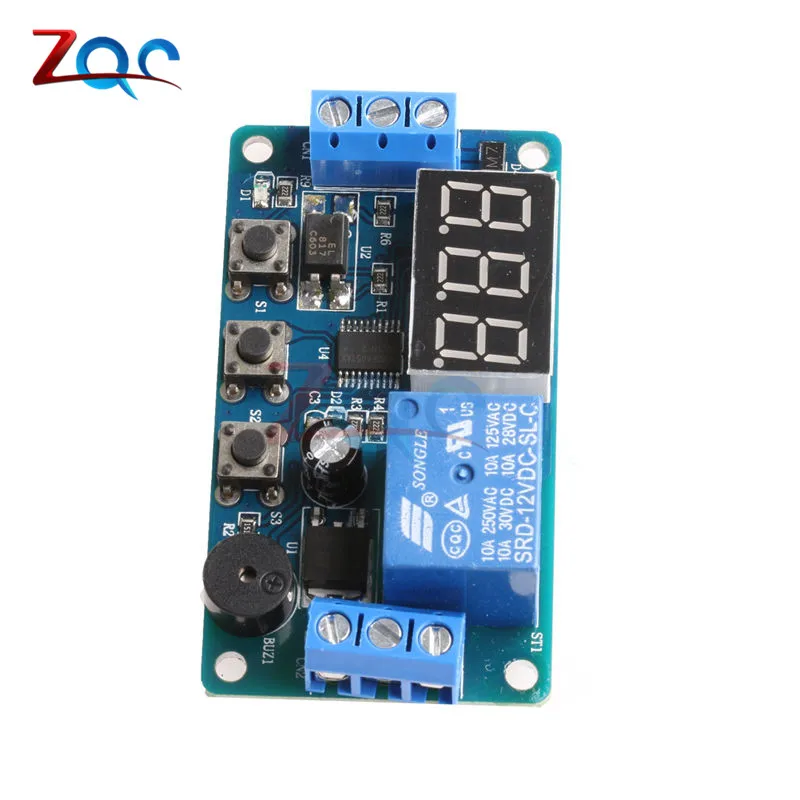

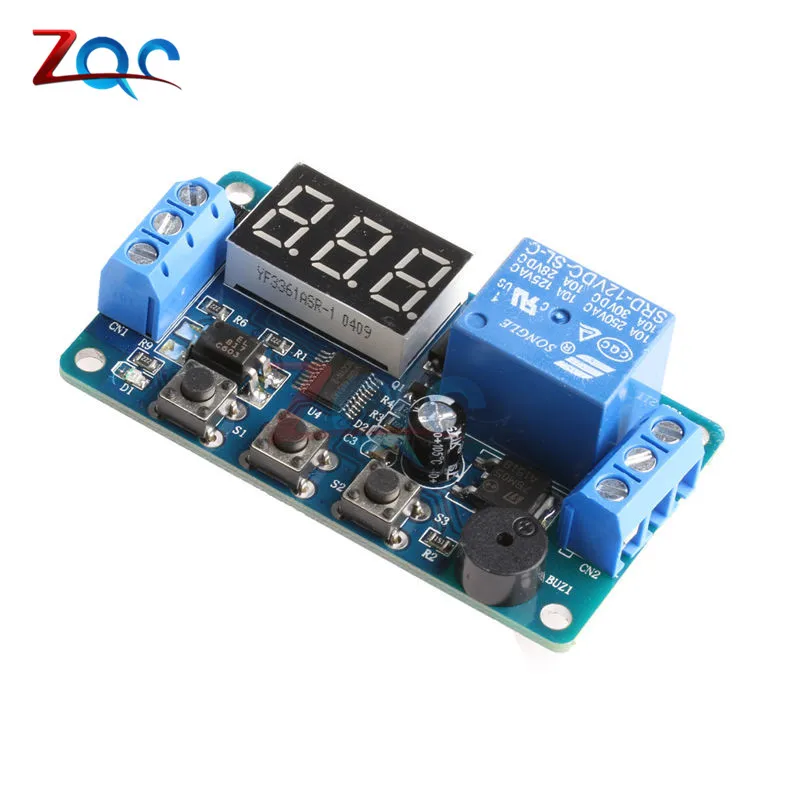

Specification:
Working voltage: DC 12V (normal operating voltage DC10V-16V)
Source: DC4V -20V (positive trigger common power button, PNP sensors, PLC signals, etc.)
Quiescent Current: 20mA
Working current: 50mA
Life: more than 10 million times
Working temperature: -40 -85℃

Feature:
Anti-reverse voltage input circuit, worry-free wiring. Signal input optocoupler isolation, anti-interference ability.

Set the parameters of power and permanent memory. Powerful flash MCU online programming capabilities, according to user needs can contact the manufacturers to customize the functionality.
S1: power on, press S1 2 seconds to enter mode selection menu, press S1, choose P-1 ~ P-4 mode.
S2: OK / Shift key: Press to adjust the position of the LED is blinking, which LED is blinking, S3 to adjust the value of digital tube flicker.
Until you press S2, the digital is no longer flashing.
S3: digital display flashes, S3 adjustment digits from 0-9 successively changed. Normal digital tube display, S3 to adjust the position of the decimal point, the decimal point in bits 0-999 minutes; in 10 bit from 0 to 99.9 seconds; no decimal point indicates 0-999 seconds.

Model Description:
P-1: triggering signal is received, the relay is turned on, the timer expires, the relay off.
A1: During the delay trigger again invalid
A2: During re-timing delay trigger again
A3: Delay trigger again during termination timing relay reset

P-2: triggering signal is received, X start time, the end of counting relay, Y start time, the end of counting the relay off

P-3: Cycle Switch Mode
A1: After power relay is turned on, the end of the timing off, an infinite loop.
A2: After power relay is off, the timing turned end, an infinite loop.


100006(10

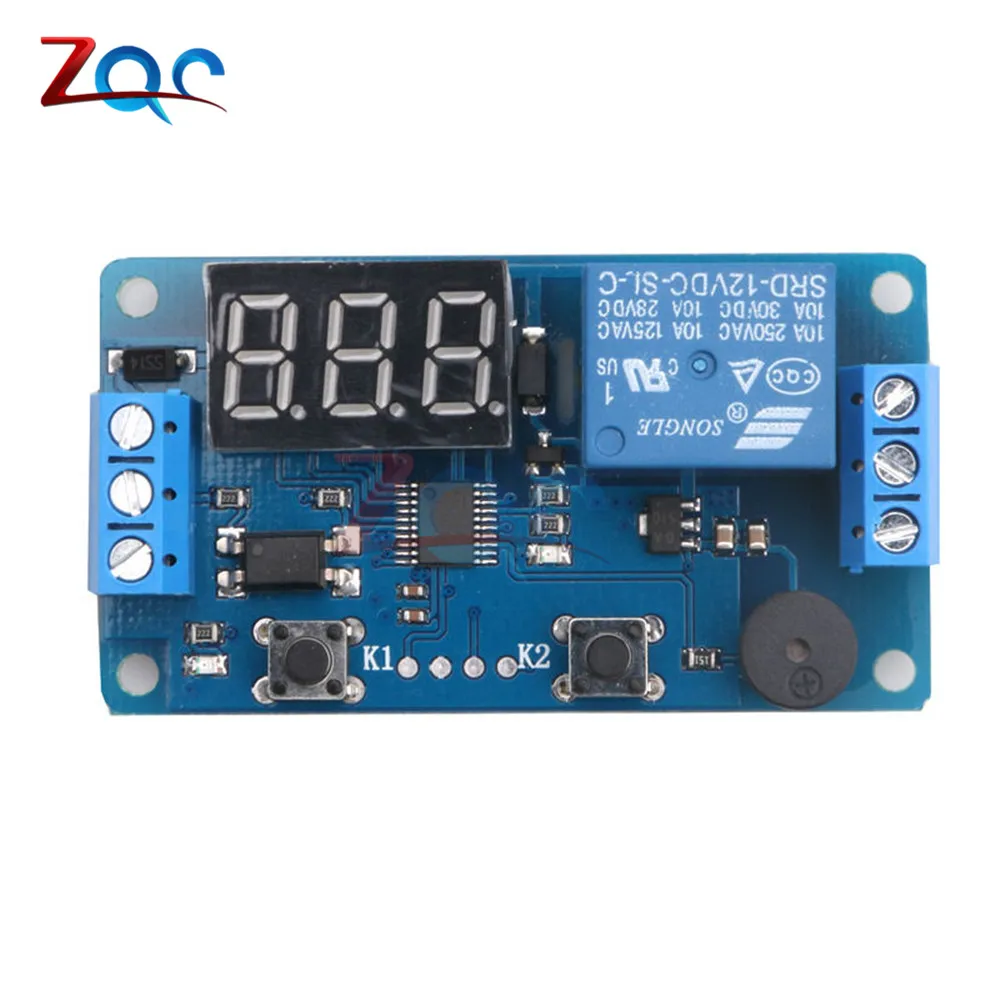

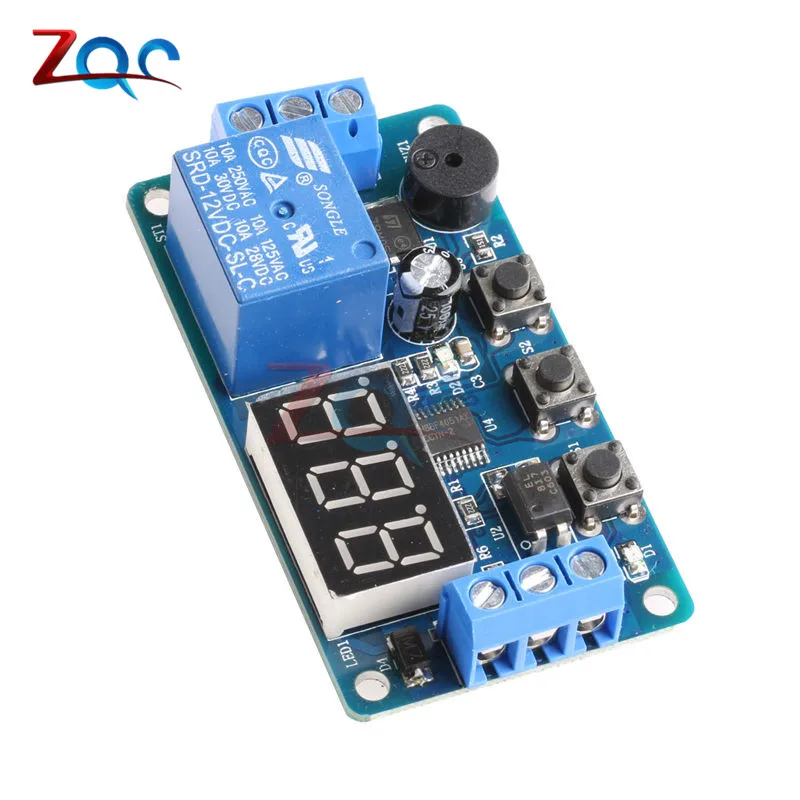

Specification:
Working voltage: DC 12V (normal operating voltage DC10V-16V)
Source: DC4V -20V (positive trigger common power button, PNP sensors, PLC signals, etc.)
Quiescent Current: 20mA
Working current: 50mA
Life: more than 10 million times
Working temperature: -40 -85℃
Dimensions: 64.2mm * 34.8mm * 18.5mm

Feature:
Anti-reverse voltage input circuit, worry-free wiring. Signal input optocoupler isolation, anti-interference ability. Set the parameters of power and permanent memory. Powerful flash MCU online programming capabilities, according to user needs can contact the manufacturers to customize the functionality.
