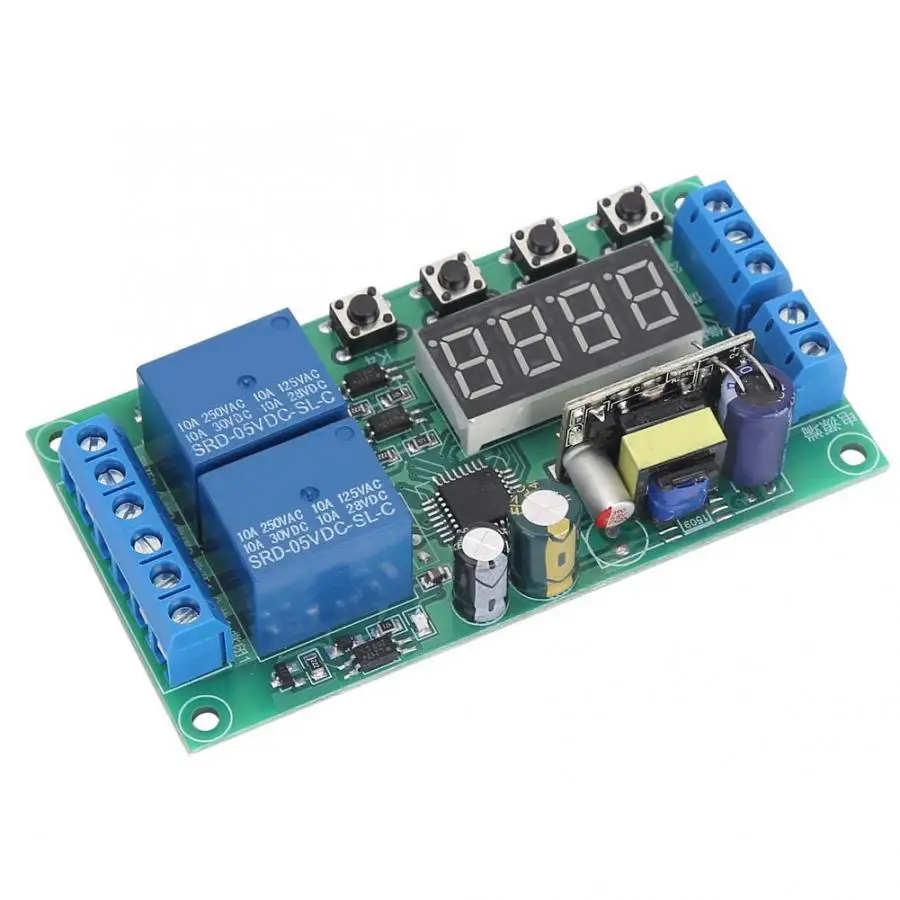

YF-7 AC 220V Dual Channel Delay Relay Module Multifunctional Pulse Trigger Cycle Timer 0.01s-999m 5A Time Delay Relay

YF-7 AC 220V Dual Channel Delay Relay Module Multifunctional Pulse Trigger Cycle Timer 0.01s-999m 5A Time Delay Relay Item NO.: 33042875161

Write a Review
US$ 26.88
Customized Requirements
Quantity
Stock ( 9999999 )

Copy and share this link on social network or send it to your friends

Copy
Product Name YF-7 AC 220V Dual Channel Delay Relay Module Multifunctional Pulse Trigger Cycle Timer 0.01s-999m 5A Time Delay Relay
Item NO. 33042875161
Weight 0.054 kg = 0.1190 lb = 1.9048 oz
Category Home Improvement > Electrical Equipments > Relays > Time Relay
Creation Time 2020-10-29

AC 220V Dual Channel Delay Relay Module Multifunctional Pulse Trigger Cycle Timer 0.01s-999m

{BCA2B798-1743-421C-90F2-68788188DFE8}_20200925172658

Feature:

  • This delay timing relay has 32 kinds of commonly-used functions to meet the needs of more application.
  • Easy to control the operation of electromagnetic valves, pumps, motors, lamp belts and other equipment.
  • Output power: It can control DC or AC load within 5A.
  • Time control range: 0.01 seconds to 999 minutes can be adjusted at any time.
  • High quality electronic components, stable performance.

Specification:
Model: YF-7
Input voltage: 220V AC
Time range: 0.01s -999 minutes(Adjustable)

Package list:
1 * Relay Module

Note:
The actual product color may deviate from the photo due to light.
There may be a slight deviation in the measurement of product.

Wiring port description:
Left 1, + : Input power positive
Left 2, - : Input power negative
Left 3, signal 1: positive signal input
Left 4, signal 2: positive signal input
Left 5, common line: signal input negative (signal 1 and signal 2 share a negative)
Right 1, normally 1: Relay 1 normally interface, the relay is suspended before the suction, after the pull-in and short with COM
Right 2, Common 1: Relay 1 common interface
Right 3, normally open 1: Relay 1 normally open interface, shorted to COM before the relay is , suspended after suction
Right 4, normally 2: Relay 2 normally interface, the relay is suspended before the suction, short-circuit with COM after the suction
Right 5, Common 2: Relay 2 common interface
Right 6, normally open 2: Relay 2 normally open interface, short-circuit with COM before the relay is pulled in, hang and hang after suction
6: Function list: function can be arbitrarily set to buy back, there are instructions provided; power failure can memorize any parameters set
All the functions in P-11 to P-44 are as follows; signal 1 corresponds to relay 1; signal 2 corresponds to relay 2;
The two channels can be triggered at the same time; they are independent of each other; they do not affect each other; the respective relays of the respective signal tubes
P-11: Jog (give the signal relay, the signal disappears and the relay stops)
P-12: Self-locking (send a signal relay to pull in, then give a signal relay to stop)
P-13: Give the signal, the relay will stop automatically for A seconds; the trigger will be invalid during the delay.
P-14: Give the signal, the relay will stop automatically for A seconds; trigger the retime during the delay.
P-15: Give the signal, the relay will stop automatically for A seconds; trigger the superimposed timing during the delay.
P-16: Give signal, the relay will stop automatically for A seconds; trigger reset during delay
P-17: Give the signal, the relay is , the input signal is disconnected, the power is turned off after A seconds, and the signal is kept output again during the delay.
P-18: After power-on, the relay will immediately pull in, after a delay of A seconds, the power will be turned off;
P-21: Give the signal, after a delay of A seconds, the relay pulls in
P-22: Give signal, after more than A seconds, the relay pulls in, the signal disappears, the relay stops.
P-23: After the signal disappears for more than A seconds, the relay pulls in, the signal disappears, and the relay stops.
P-24: There is a signal. After more than A seconds, the relay is . When the signal disappears for more than A seconds, the relay stops.
P-25: There is a signal after more than A seconds, the relay is , and after a signal exceeds A seconds, the relay stops.
P-26: There is a signal. The relay stops after A seconds of suction. The signal disappears and the relay stops again for A seconds.
P-27: The pulse signal is detected, the relay stops; if there is no pulse signal, the relay delays for A seconds; (the signal is continuous or the signal disappears as no pulse signal)
P-28: After power-on, after a delay of A seconds, the relay pulls in until the power is turned off.
P-31: After power-on, the relay is for A seconds, disconnected for B seconds, infinite loop;
P-32: Signal, start P-31 infinite loop; signal disappears, terminate loop
P-33: Give a signal, start P-31 infinite loop; give another signal to terminate the loop
P-34: After power-on, after a delay of A seconds, the relay pulls in and closes after B seconds.
P-35: There is a signal. After a delay of A seconds, the relay pulls in and closes after B seconds.
P-36: There is a signal. After more than A seconds, the relay pulls in, the B is stopped after B seconds, the signal disappears, and the timing is cleared.
P-37: There is a signal, the relay will stop automatically for A seconds, and then stop for 24 seconds. The signal trigger is invalid during A+B time.
P-38: There is a signal, the relay will stop automatically for A seconds, stop and re-time for B seconds, and then automatically close for A seconds.
P-41: There is no signal; the signal disappears; the relay works after the delay of A time.
P-42: The signal disappears, after a delay of A time, the relay works; the end of work B time
P-43: The signal disappears. After the A time, the relay works; the working B time ends.
P-44: After the signal is sent for more than A times, the relay is for B seconds.
P-45: After power-on, relay 1 works for A seconds after disconnection; relay 2 works for B seconds.
P-46: Give signal 1, relay 1 works after A seconds is disconnected; relay 2 works for 2 seconds to disconnect
P-47: After signal 1 is applied, relay 1 is operated for A seconds; relay 2 starts to work; after 2 seconds, relays 1 and 2 are disconnected at the same time.
P-48: After power-on, relay 1 works for A seconds after disconnection; stops for B seconds; relay 2 works for C seconds and stops for D seconds;
7: Button setting description: Power-on display "_" means to enter standby mode;
Press the first K1, (It takes more than 1 second to be effective to prevent false triggering) Display: P -11: K2 adjusts the main mode, K3K4 adjustment function
Press the second K1, the screen displays: A00x: K2 and K3 adjust the first time A, K4 adjust the decimal point (time unit)
Press the 3rd K1, the screen displays: b00x: K2 and K3 adjust the second time B, K4 adjusts the decimal point (time unit)
Press the 4th K1, the screen displays: C00x: K2 and K3 adjust the second time B, K4 adjusts the decimal point (time unit)
Press the 5th K1, the screen displays: d00x: K2 and K3 adjust the second time B, K4 adjusts the decimal point (time unit)
Pressing K6 for the 6th time, "_" indicates that the setting is completed and enters the standby state.
Press K4 in standby mode to permanently turn off/on the display and switch the low power mode.
